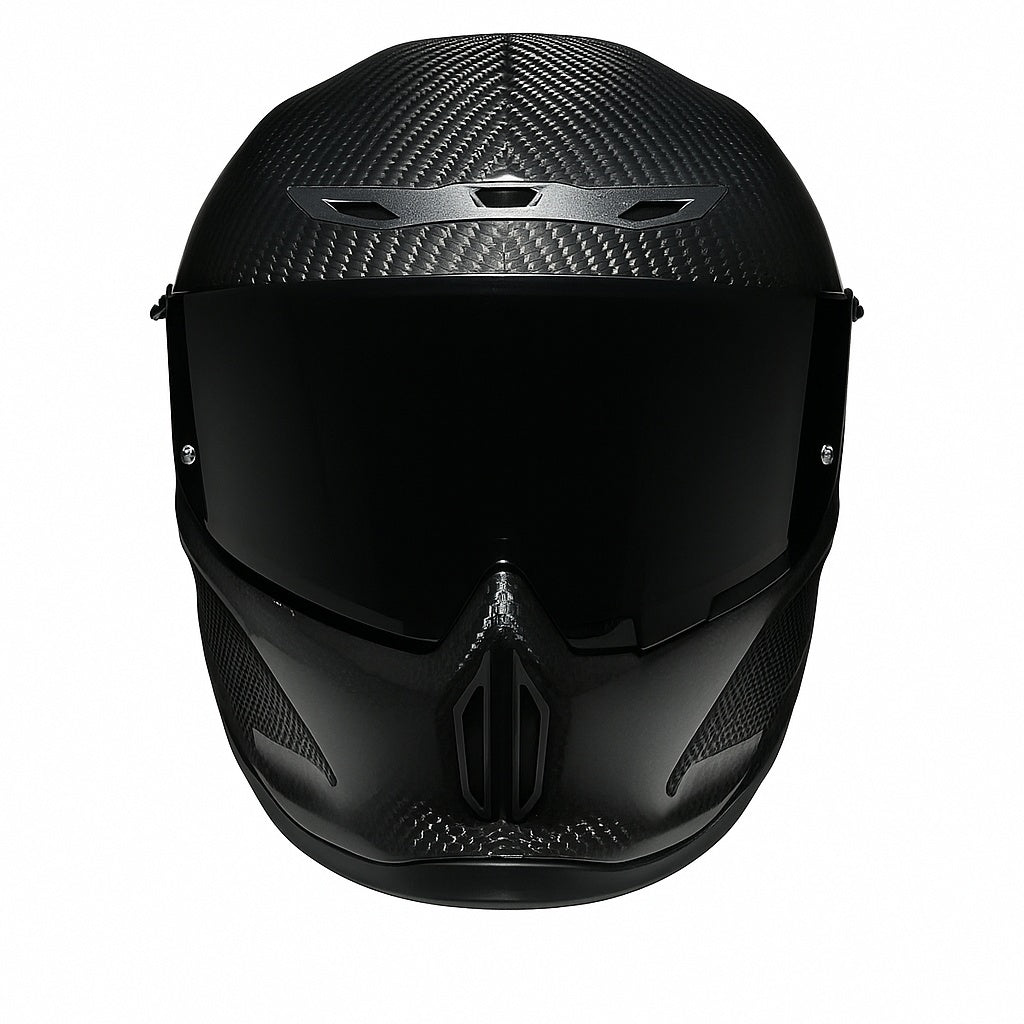

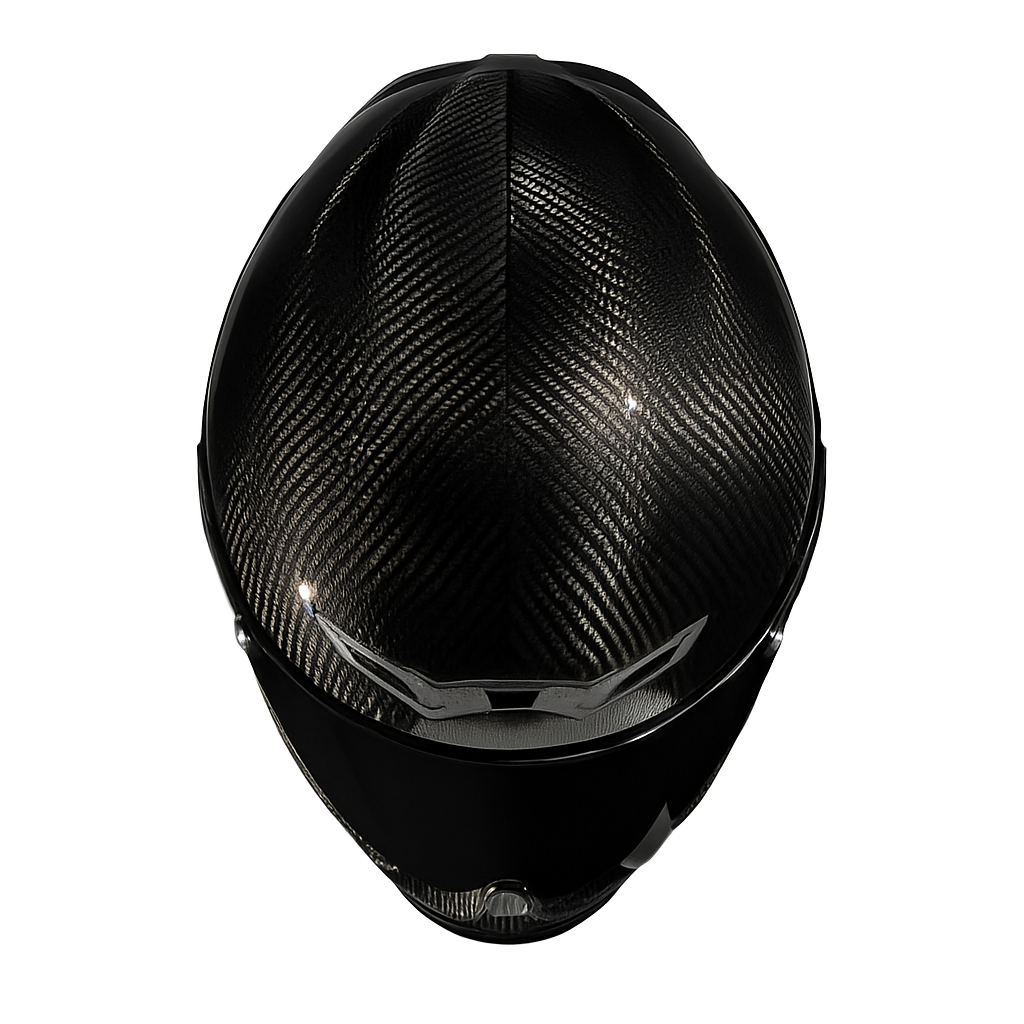

Liquid Carbon EOX

Shell
Next-gen quad-composite construction
Carbon Fiber, Kevlar, Fiberglass & Nylon blend

3 shell sizes available
5% lighter than the ATLAS 4.0 Carbon model

Ventilation
4 intake + 2 exhaust ports
Dual top vents
RAID AIR-CONTROL chin/front ventilation
Dual rear exhaust channels

Aerodynamics
Enhanced stability
37% reduction in angular velocity vs ATLAS 4.0 Track

Thermal Performance
110% better heat management than ATLAS 4.0 Carbon

Visor
Ultra-wide viewing range
215° horizontal / 100° vertical vision

Optical Class-1 2D visor
ECE day/night approved, anti-scratch, 90% UVB & 64% UVA protection, Pinlock-ready

Includes Pinlock 120 insert

Redesigned quick-release visor system
Swap visors in 5 seconds

5-position opening system, including anti-fog de-mist mode

Interior
6-piece channeled multi-density EPS/EPP liner
4 density zones for low, mid & high-speed impacts

New headform design using 4 EPS + 2 EPP components for optimized impact absorption

Helmet Fit
Intermediate-oval profile

Consistent ISO-based pressure distribution for uniform comfort

Liner & RHEON®
Comes with extra Slimline cheek pads
Fully replaceable cheek pads & headliner
Premium moisture-wicking, ultra-soft peached-jersey fabric
Integrated speaker pockets with sound-dampening
Removable, hand-washable interior
Emergency cheek-pad release system
Detachable chin curtain
RHEON® energy-management tech positioned for airflow & rotational impact control
Fidlock® magnetic chin-strap closure

Certifications
ECE 22.06
DOT compliant
